Ever since Tadao Baba disrupted the sportbike landscape in 1992 with the lightened, high-performance Fireblade philosophy, Honda’s flagship superbike has set the global standard for control, engineering refinement, and blistering track speed. The introduction of the liter-class Honda CBR1000RR in 2004 marked a dramatic shift. Combining MotoGP technology derived from the RC211V—such as the Unit Pro-Link rear suspension and Programmed Dual Sequential Fuel Injection (PGM-DSFI)—the CBR1000RR Fireblade established itself as an absolute icon on both the street and the World Superbike circuit.

However, riding a high-powered liter bike inevitably exposes its sleek exterior to significant wear and hazards. High-speed track sessions, highway stone chips, sun-faded factory paint, low-speed driveway drops, stress cracking near engine mounting bolts, and severe radiant exhaust heat can rapidly degrade your Fireblade’s pristine appearance. When the time comes to refresh or replace damaged bodywork, riders face a daunting financial barrier at dealership parts counters. Replacing a complete set of OEM (Original Equipment Manufacturer) Honda CBR1000RR fairings piece-by-piece can easily cost between $3,800 and $5,500 AUD—frequently exceeding the market value of the bike itself.

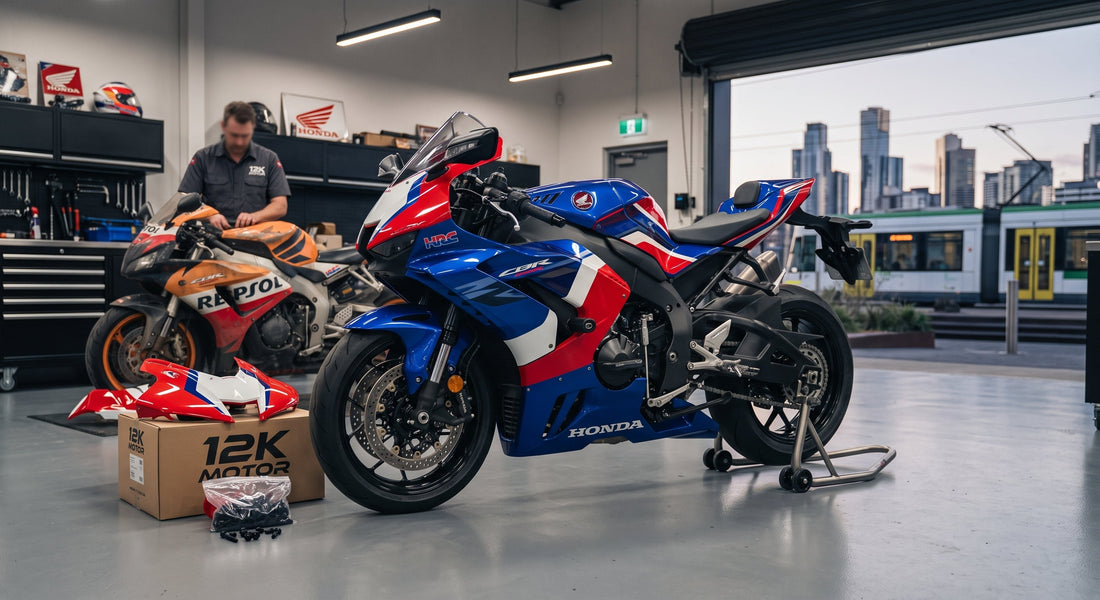

This comprehensive technical guide explores the world of high-grade aftermarket Honda CBR1000RR fairings. You will learn how modern ABS injection molding achieves 100% factory-level fitment, how to navigate generation-specific bodywork nuances from 2004 to 2026, how to properly insulate panels against intense exhaust heat, and how 12K Motor (12kmotor.com.au) delivers show-quality, track-ready bodywork transformations at a fraction of dealership prices.

1. The Evolutionary Architecture of the Honda CBR1000RR (SC57 to SC82)

To successfully select and install aftermarket bodywork on a Fireblade, one must first understand how Honda’s chassis designs, cooling ducting, and exhaust layouts evolved across more than two decades. Unlike generic motorcycles, each CBR1000RR generation features unique mounting points, internal subframe stays, and aerodynamic profiles.

Generation 1: 2004–2005 (SC57 Early Fireblade)

The original CBR1000RR SC57 introduced an aggressive, muscular stance defined by dual ram-air intake scoops positioned directly beneath the sharp dual-headlight assembly. A defining feature of the 2004–2005 model is its high-exit center undertail exhaust system, wrapped neatly inside a deep rear tail section.

Because the exhaust pipe snakes directly beneath the subframe, the undertail cowl and tail section face immense radiant heat. Aftermarket fairings for the 2004–2005 SC57 must incorporate precise mounting clearances for the undertail heat shield, while ensuring the forward nose cowl seals tightly against the inner rubber ram-air ducting to preserve pressurized airbox intake at high speeds.

Generation 2: 2006–2007 (SC57 Facelift)

Honda revised the SC57 platform in 2006 with sharper, sleeker aesthetic contours and mechanical performance tweaks. The 2006–2007 fairing profile introduced larger side engine vent cutouts to exhaust engine bay heat more efficiently, along with a reshaped lower belly pan and a streamlined front mudguard.

While the 2006–2007 model maintains the undertail exhaust system of its predecessor, the side fairing clip locations and radiator surround shrouds differ significantly from the 2004–2005 model. Installing 2004 fairings on a 2006 frame creates mounting gap misalignments around the radiator mounts. 12K Motor utilizes specific, generation-dedicated molds to ensure accurate mounting tabs for both SC57 variants.

Generation 3: 2008–2011 (SC59 Compact Styling)

In 2008, Honda unveiled a radical design departure with the SC59 Fireblade. Moving away from the long, sharp nose and undertail pipe, the SC59 introduced a compact, blunt nose cowl, a mass-centralized underslung exhaust system, and minimal, lightweight side panels. The tail section was dramatically shortened, exposing more of the rear swingarm.

The compact nature of the SC59 means panels sit extremely tight against engine covers and exhaust headers. The right-hand side belly pan sits just millimeters away from the catalytic converter and exhaust crossover pipes. Precision molding and thick internal thermal shielding are absolute requirements for SC59 bodywork to prevent lower panel warping.

Generation 4: 2012–2016 (SC59 Facelift & 20th Anniversary)

Celebrating two decades of Fireblade dominance, the 2012–2016 facelift updated the SC59 with layered main fairings, an aggressive line-cut front chin spoiler, dual-LED lighting accents, and multi-piece side fairings designed to optimize high-speed stability and cooling.

The layered side fairings on the 2012+ SC59 interlock using a complex series of blind slide-tabs and rubber push-pins. Inferior aftermarket fairings often suffer from weak or misshapen tabs that fail to snap together, leaving visible panel gaps along the side flanks. High-pressure injection molding guarantees that these delicate interlock tabs retain factory dimensions and snap together effortlessly.

Generation 5: 2017–2019 (SC77 Fireblade)

The SC77 marked a major electronic and lightweight structural leap forward. Featuring ultra-compact LED headlights, a narrow fuel tank profile, and an aggressive, razor-sharp front nose, the SC77 bodywork is significantly narrower than previous generations.

Fairing kits for the 2017–2019 CBR1000RR must maintain tight manufacturing tolerances to clear the slim aluminum frame, electronic throttle bodies, and compact radiator assembly without binding on wire looms or brake lines.

Generation 6: 2020–2026 (SC82 CBR1000RR-R Fireblade SP)

Built explicitly for track supremacy, the SC82 CBR1000RR-R Fireblade SP introduced MotoGP-derived aerodynamic downforce winglets integrated directly into multi-layered outer side fairing tunnels. The front nose cowl features a direct-through headstock ram-air duct channel designed to maximize intake pressure at speeds exceeding 290 km/h.

The aerodynamic winglets on the SC82 generate substantial downforce at track speeds. Aftermarket bodywork for the SC82 must utilize high-tensile, virgin ABS plastic compounds to prevent panel flexing or structural tab failure under severe aerodynamic loads.

2. Material Science: Virgin ABS Plastic vs. Compression & Fiberglass

When searching for aftermarket CBR1000RR fairings online, riders encounter vast price discrepancies. Understanding the differences in material quality and manufacturing techniques reveals why cheap marketplace kits fail and why premium injection-molded kits perform like OEM bodywork.

Why Virgin ABS Plastic is Essential for Street Riding

Acrylonitrile Butadiene Styrene (ABS) is an engineered thermoplastic polymer ideal for motorcycle bodywork. The Acrylonitrile provides chemical and thermal resistance; the Butadiene delivers impact toughness and elasticity; and the Styrene supplies structural rigidity and a smooth surface finish for painting.

However, the purity of the raw plastic compound dictates its performance:

• 100% Virgin ABS Compound: Formulated from fresh, unrefined polymer pellets. Virgin ABS retains long molecular chains, allowing fairing panels to flex under engine vibration, highway wind buffeting, and mounting stress without cracking around fastener points. 12K Motor uses virgin ABS across its entire CBR1000RR range.
• Recycled Scrap Plastic Slurry: Budget manufacturers save costs by melting down industrial plastic waste, reground fairing scraps, and old electronic housings. This thermal recycling process breaks the polymer chains, resulting in a brittle, weak plastic that cracks easily when bolts are torqued down.

The Precision Advantage of Injection Molding

The manufacturing method used to shape the molten plastic determines how accurately the fairing fits your motorcycle frame:

Industrial Injection Molding: Steel molds are precision-machined using multi-axis CNC mills to replicate original factory CAD geometry. Molten virgin ABS is injected into the closed steel die under extreme hydraulic pressure. As the plastic fills every cavity, mounting tabs, locking teeth, and fastener holes are formed simultaneously as a single solid unit. Panels emerge with uniform thickness and microscopic structural accuracy, dropping directly onto your bike's mounting points.

Low-Cost Compression Molding: Heated plastic sheets are pressed between crude top and bottom mold halves. Pressure distribution is inconsistent, leading to thick resin pools in some spots and paper-thin areas in others. Crucially, mounting holes are rarely pre-drilled, and attachment tabs are frequently glued onto the panel manually after molding. These glued tabs routinely snap off during shipping or under standard engine vibration.

3. Anatomy of a Complete 12K Motor CBR1000RR Fairing Kit

Unboxing a 12K Motor fairing set reveals a complete exterior bodywork kit designed to make your Fireblade look brand new. A standard liter-class superbike package typically includes between 16 and 22 individual components depending on the generation:

4. Multi-Layer Automotive Finish & Clear Coat Protection

Honda Fireblades are legendary for their deep, lustrous paint finishes—from the vibrant *Winning Red* to the classic *Pearl Sunbeam White*. Delivering a deep, liquid-gloss shine that withstands daily road exposure requires an advanced, multi-stage painting procedure in climate-controlled spray booths.

A critical quality hallmark of 12K Motor bodywork is Under-Clear Graphic Sealing. Inexpensive aftermarket kits cut corners by sticking vinyl decals onto the panel *after* painting. Exposed to sun, pressure washing, or fuel fumes, those bare decals peel and lift along the edges. By sealing all graphics beneath multiple coats of UV-resistant clear coat, 12K Motor ensures the artwork remains smooth, protected, and fade-free for years.

5. Iconic CBR1000RR Livery Options & Custom Paint Services

Whether you want to restore your CBR1000RR to showroom-original condition or build a custom head-turner, 12K Motor offers an extensive range of classic and modern Honda liveries across all Fireblade generations.

• Repsol Honda Replica Edition: The iconic MotoGP racing livery. Featuring brilliant orange, deep red, and pure white color blocks accented by factory sponsor badges (Castrol, Michelin, RK Chain). Available for SC57, SC59, SC77, and SC82 models.
• HRC Factory Tri-Color (Winning Red/Pearl White/Blue): Honda’s historic factory racing scheme. A clean, sophisticated blend of deep red, bright white, and navy blue accents that honors Honda Racing Corporation heritage.
• Castrol Racing Superbike Livery: Inspired by World Superbike racing, featuring bold emerald green, bright red, and crisp white graphics over a motorsport white background.
• Konica Minolta & Movistar Race Replicas: Striking satellite team designs utilizing high-contrast electric blue, black, and white graphics for riders who want an exclusive track-inspired look.
• Red Bull Bullhead Race Scheme: Modern, aggressive styling incorporating matte or gloss dark blue tones, vibrant yellow accents, and bold Red Bull graphics.
• Stealth Satin Black & Carbon Fiber Print: Sleek, modern aesthetics featuring full satin matte black paint, gloss black accents, and subtle dark metallic logos for an aggressive urban profile.
• Custom Bespoke Paint Services: Want a unique one-of-a-kind design? 12K Motor’s paint team can build custom liveries based on your reference photos, custom color codes, or personal sketches—delivering a tailored build without exorbitant custom shop prices.

6. Crucial Thermal Protection for High-RPM Inline-Four Engines

The CBR1000RR's high-revving 999cc inline-four engine produces substantial heat. Exhaust headers operate at extreme temperatures, and lower collector pipes sit just centimeters away from the inside face of the lower belly pan fairings.

On early SC57 models with center undertail exhaust routing, radiant heat from the rear pipe can also warm the passenger tail cowl and undertail tray. Unprotected ABS plastic exposed to these extreme thermal zones will soften, warp, bubble, or scorch over time.

Step-by-Step Heat Shield Application Guide

1. Clean the Interior Panel Surface: Wipe down the unpainted inside surface of the lower belly pan and tail sections with isopropyl alcohol to remove lingering dust or mold release oils.
2. Identify High-Heat Areas: Test-fit the lower panels dry and note where exhaust header pipes, catalytic converters, and mid-pipes pass closest to the plastic.
3. Measure & Cut Thermal Foil: Cut the self-adhesive fiberglass aluminum tape into fitted sheets using heavy-duty shears. Ensure you leave a 10mm clearance around bolt holes and rubber grommet locations.
4. Firm Application: Peel the adhesive backing and press the heat shield firmly onto the plastic. Use a hard rubber roller or squeegee to flatten out air bubbles and seal all edges tightly, preventing moisture or road oil from seeping underneath the foil.

7. Step-by-Step Garage Installation Masterclass

Installing a complete fairing kit on a Honda CBR1000RR is a straightforward garage project when tackled systematically. Having the right tools organized beforehand ensures a smooth, scratch-free assembly process.

Required Tools Checklist

• Metric Hex/Allen Keys (Ball-End): 3mm, 4mm, 5mm, and 6mm T-handle wrenches.
• Metric Socket Set & Ratchet: 8mm, 10mm, and 12mm shallow sockets.
• Screwdrivers: #1 and #2 Phillips head, plus a flathead trim tool.
• Trim Removal Tools: Non-marring plastic pry wedges for releasing push-rivets without scratching paint.
• Threadlocker: Medium-strength blue threadlocker compound (Loctite 242) for metal-to-metal fasteners.
• Hardware Tray: Labeled parts bins to organize shoulder bolts, plastic clips, and rubber well-nuts by panel group.

The Systematic Four-Stage Disassembly Process

Golden Mechanic Rules for Reassembly

1. The "Loose Assembly" Method: Never tighten a single fairing bolt completely until EVERY bolt in that entire panel section is loosely started by 3 to 4 threads. Motorcycles experience slight subframe and chassis tolerances. Keeping hardware loose allows interlocking tabs and slide pins to align naturally without binding. Once all fasteners are engaged, tighten them systematically working from the center of the motorcycle outward.

2. Inspect Front Fairing Stays & Subframes: If an aftermarket fairing mounting hole appears misaligned by 5mm to 10mm, do not force or drill out the plastic panel! On pre-owned motorcycles, minor driveway tips or transport strap tension can subtly bend the aluminum front headlight stay or rear subframe arms. A minor 2mm bend at the stay root translates to a significant 10mm misalignment at the outer nose cowl bolt point. Always check and straighten bent metal stay brackets before mounting fresh bodywork.

3. Proper Rubber Well-Nut Handling: Honda fairings rely on brass-threaded rubber well-nuts to dampen high-frequency engine vibration. Old rubber well-nuts dry out, split, or become squished out of shape. Always install fresh rubber well-nuts (included in 12K Motor hardware packs). Insert the rubber body fully into the panel mounting hole; as you tighten the bolt, the rubber swells behind the bracket, creating a secure, vibration-dampened mount that won't crack the surrounding ABS plastic.

8. Maintenance, Care, and Detailing Routine

Once your Fireblade is reassembled and looking showroom-fresh, following a dedicated detailing routine preserves its high-gloss finish and clear-coated graphics for the long haul.

• The Initial Cure Period: Allow fresh fairings to rest for 48 to 72 hours after unboxing and installation before applying paste waxes or ceramic coatings, giving the clear coat finish time to fully stabilize in your ambient climate.
• Proper Washing Technique: Avoid commercial high-pressure car washes, which can force water past rubber panel seals or blast edge seams. Wash your bike by hand using a plush microfiber mitt and pH-neutral automotive shampoo.
• Safe Insect & Tar Removal: High-speed riding leaves dried bugs on the front nose cowl and windscreen. Never scrub dry bugs with abrasive sponges! Lay a wet microfiber towel soaked in warm water over the nose cowl for three minutes to soften dried bug residue before gently wiping it away.
• Ceramic Coating Protection: Apply a high-grade SiO2 ceramic coating or synthetic liquid sealant over all painted surfaces. This creates a hydrophobic barrier that repels road grime, chain fling, and bug acids while making routine washes effortless.
• Post-Ride Fastener Inspections: High-revving inline-four engines generate steady harmonic vibrations. Re-check exterior fairing bolt torque after your initial 100 km ride to ensure no rubber well-nuts or push-rivets have settled loose.

9. Fuel Tank Cover Solutions & Color Synchronization

On sportbikes like the CBR1000RR, the visible fuel tank area requires careful planning during a full fairing replacement. Depending on the model year, Honda utilized either metal fuel tanks or fuel tanks housed beneath plastic exterior tank shells.

10. Comprehensive Financial Analysis (OEM vs. 12K Motor)

Restoring a damaged motorcycle or updating its appearance shouldn't break the bank. The comparison table below highlights the cost savings achieved when choosing a complete 12K Motor aftermarket fairing package over original OEM replacement parts sourced from a dealership.

11. Real-World Case Studies & Transformations

Case Study 1: Restoring a Classic 2006 SC57 Repsol Edition

Rider: Marcus T., Brisbane, QLD
Scenario: Purchased a mechanically sound 2006 CBR1000RR with sun-faded plastics, cracked mounting tabs around the belly pan, and deep scratches on the right side cowl from a low-speed driveway drop.
Solution: Installed a complete 12K Motor Repsol Honda Replica Fairing Kit with included thermal heat shielding.
Result: "The fitment blew me away. Every single pre-drilled hole lined up with my OEM frame brackets. The paint depth on the orange and red graphics looks incredible, and the bike went from looking tired to looking like a showroom display piece in a single Saturday afternoon."

Case Study 2: Protecting Factory OEM Bodywork on a 2021 SC82 SP for Track Days

Rider: David L., Sydney, NSW
Scenario: Owned a brand-new CBR1000RR-R Fireblade SP and wanted to participate in frequent track day sessions at Sydney Motorsport Park without risking damage to expensive factory SP bodywork.
Solution: Unbolted the original factory plastics for safe storage and fitted a 12K Motor HRC Tri-Color Fairing Kit equipped with integrated winglet tunnels.
Result: "I can push my limits on track with complete peace of mind knowing my original $5,000 factory plastics are safely packed away in bubble wrap at home. The 12K Motor fairings handle high-speed wind downforce effortlessly, and my track mates couldn't tell the difference from stock."

12. Frequently Asked Questions (FAQ)

Are 12K Motor CBR1000RR fairing holes pre-drilled for installation?

Yes. Every 12K Motor fairing kit is manufactured using high-pressure steel injection molds. All mounting holes, clip slots, and alignment tabs are 100% pre-drilled and formed during production to match factory frame points on your motorcycle.

Will aftermarket fairings fit over my aftermarket exhaust system?

Yes. 12K Motor fairings adhere strictly to factory OEM dimensions. They fit smoothly alongside popular slip-on mufflers and full exhaust systems, including Akrapovič, Yoshimura, SC-Project, Termignoni, and Arrow. Always apply the included thermal heat shielding along the lower belly pan when running aftermarket headers.

Can I order a custom paint design not shown on your website?

Yes! 12K Motor provides custom paint options. You can submit photos, reference sketches, or custom paint codes, and their painting team will render and execute your custom design.

How do I prevent engine heat from damaging my new lower fairings?

Every complete kit includes self-adhesive aluminum thermal heat shielding tape. Apply this thermal tape generously along the interior face of the lower belly pan and lower mid-fairings near exhaust headers prior to mounting.

What is the difference between injection molding and compression molding?

Injection molding uses molten virgin ABS injected under high pressure into precision steel dies, yielding uniform panel thickness, crisp pre-drilled holes, and durable tabs. Compression molding presses plastic sheets between basic block molds, resulting in uneven panel thickness, un-drilled holes, and glued-on tabs that break easily.

Are full fuel tank covers included with CBR1000RR fairing kits?

Tank cover inclusions depend on the specific generation of your CBR1000RR. For models designed with exterior plastic tank shells (such as select SC57 and SC59 models), matching full tank covers are included in the kit.

How long does order processing and shipping take within Australia?

In-stock items ship within 1 to 2 business days, with delivery taking 3 to 8 business days across Australia. Custom painted or made-to-order kits undergo a 2 to 3 week precision painting and thermal curing process prior to dispatch.

Can I purchase single replacement panels if I scratch my bike in a fall?

Yes. 12K Motor supports existing customers by offering individual replacement panels (such as a single side cowl or front nose) without requiring you to purchase a full fairing set.

Are fairing bolts and windscreens included with the kit?

Yes! Every complete 12K Motor fairing package includes a free anodized fairing bolt kit, a dark-tinted or clear acrylic bubble windscreen, and a roll of adhesive heat shielding tape.

Are graphic decals sealed beneath the clear coat finish?

Yes. All graphics, sponsor logos, and striping are hand-applied and sealed underneath at least two to three layers of high-solid UV-resistant polyurethane clear coat, protecting them against fading, peeling, and fuel spills.

Transform Your CBR1000RR Today with 12K Motor

Refreshing or customizing your Honda CBR1000RR Fireblade should be an exciting, rewarding experience—not an expensive burden. By choosing precision virgin ABS injection molding, multi-layer UV clear coating, included radiant heat insulation, and guaranteed 100% bolt-on fitment, 12K Motor delivers the ultimate bodywork solution for Australian riders and Fireblade enthusiasts worldwide.
